ApprovalPlugin

The Plugin implements functions for handling the Approval history of your document and Inbox/Outbox

The ApprovalPlugin main actions, conditions, rules and API

Table of contents

  1. Terms
    1. Approval history
      1. How to fill
      2. Structure
      3. How to get
    2. Inbox
      1. How to fill
      2. Structure
      3. How to get
    3. Outbox
      1. How to fill
      2. Structure
      3. How to get
  2. How it works
  3. Installation and setting
  4. Cases
    1. How to get list of users who can approve document
    2. How to get list of documents that can be approved by user
    3. How to get approval history of document
    4. How to get list of documents approved by user

Terms

Approval history

Table of contents

A list of completed and possible approvals for the given document.

Approval history: how to fill

  1. In the Pre-execution mode, for each activity, a record is created without any user info (IdentityId, TransitionTime, Commentary, TriggerName)
  2. In the Execution mode, the record is updated with filling the info about the transition and the user (IdentityId, TransitionTime, Commentary, TriggerName).

Stored in the WorkflowApprovalHistory table.

Approval history: structure

public class ApprovalHistoryItem
{
    public Guid Id { get; set; } //record Id
    public Guid ProcessId { get; set; } //Id of the document to be approved
    public string IdentityId { get; set; } //Id of the user already approved the document at the current stage
    public List<string> AllowedTo { get; set; } //list of users who can approve the document at the current stage
    public DateTime? TransitionTime { get; set; } //time of the document approval
    public long Sort { get; set; } //sequential number of the approval stage
    public string InitialState { get; set; } //state prior to the approval
    public string DestinationState { get; set; } //state after the approval
    public string TriggerName { get; set; } //name of the approval that already done
    public string Commentary { get; set; } //user's comment specified during the approval
}

Approval history: how to get

1.Use PersistenceProvider

//get by IdentityId
var approvalHistory  = runtime.PersistenceProvider.GetApprovalHistoryByIdentityIdAsync(myIdentityId, Paging.Create(pageIndex, pageSize));
//get count for paging
var approvalHistoryCount = runtime.PersistenceProvider.GetApprovalHistoryCountByIdentityIdAsync(myIdentityId);


//get by ProcessId
var approvalHistory  = runtime.PersistenceProvider.GetApprovalHistoryByProcessIdAsync(myProcessId, Paging.Create(pageIndex, pageSize));
//get count for paging
var approvalHistoryCount  = runtime.PersistenceProvider.GetApprovalHistoryCountByProcessIdAsync(myProcessId);

2.Use action: GetApprovalHistory

Add the action to the activity or drag the specified custom activity from the Elements panel.

Inbox

Table of contents

For the current stage of approval, gives the list of users and the command available for execution.

Inbox: how to fill

When ProcessStatusChanged event in WorkflowRuntime is triggered, the table is cleared and refilled. Read about it here

Stored in the WorkflowInbox table.

Inbox: structure

public class InboxItem
{
    public Guid Id { get; set; } //record Id
    public Guid ProcessId { get; set; } //Id of the document to be approved
    public string IdentityId { get; set; } //Id of the user who can approve the document
    public DateTime AddingDate{ get; set; } //date of the record
    public List<CommandName> AvailableCommands{ get; set; } //list of approvals available to the user
}

Inbox: how to get

1.Use PersistenceProvider

//get by IdentityId
var inbox  = runtime.PersistenceProvider.GetInboxCountByIdentityIdAsync(myIdentityId, Paging.Create(pageIndex, pageSize));
//get count for paging
var inboxCount = runtime.PersistenceProvider.GetInboxCountByIdentityIdAsync(myIdentityId);


//get by ProcessId
var inbox  = runtime.PersistenceProvider.GetInboxByProcessIdAsync(myProcessId, Paging.Create(pageIndex, pageSize));
//get count for paging
var inboxCount  = runtime.PersistenceProvider.GetInboxCountByProcessIdAsync(myProcessId);

2.Use action: GetInbox

Add the action to the activity or drag the specified custom activity from the Elements panel.

Outbox

Table of contents

A list of documents agreed upon by the user (or his deputies).

Outbox: how to fill

Formed by a request from the WorkflowApprovalHistory table.

Outbox: structure

public class OutboxItem
{
    public Guid ProcessId { get; set; } //Id of the document already approved by the user
    public DateTime? FirstApprovalTime { get; set; } //date and time of the first approval of this document by the user
    public DateTime? LastApprovalTime { get; set; } //date and time of the last approval of this document by the user
    public int ApprovalCount { get; set; } //total number of approvals of this document by the user
    public string LastApproval { get; set; } //name of the last approval of this document by the user
}

Outbox: how to get

1.Use PersistenceProvider

//get by IdentityId
var outbox  = runtime.PersistenceProvider.GetOutboxByIdentityIdAsync(myIdentityId, Paging.Create(pageIndex, pageSize));
//get count for paging
var outboxCount = runtime.PersistenceProvider.GetOutboxCountByIdentityIdAsync(myIdentityId);

2.Use action: GetOutbox

Add the action to the activity or drag the specified custom activity from the Elements panel.

How it works

Table of contents

For example, consider a simple 3-step process:

  1. Request - the document is created and ready for approval

  2. Manager signed - the document is approved by a manager

  3. Boss signed - the document is approved by the boss

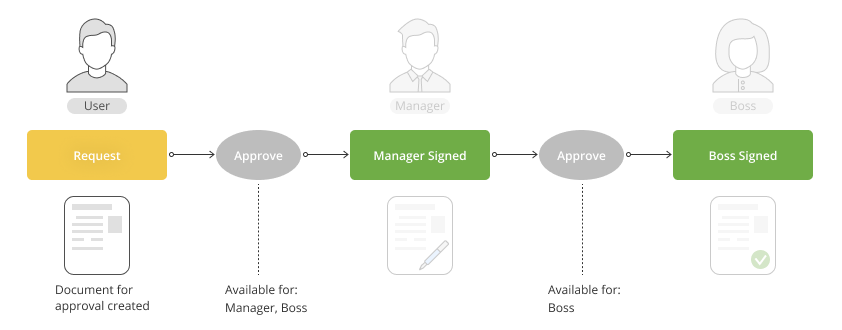

Current state: request

1

At this stage, the ApprovalHistory, Inbox, Outbox tables look as follows:

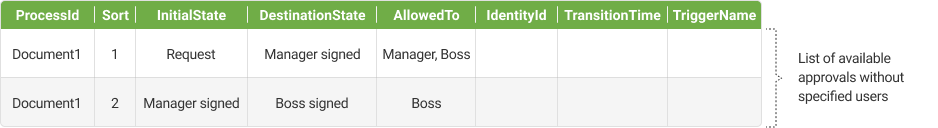

Approval history

2

Inbox

For Manager:

3

For Boss:

4

Outbox

For Manager:

5

For Boss:

5

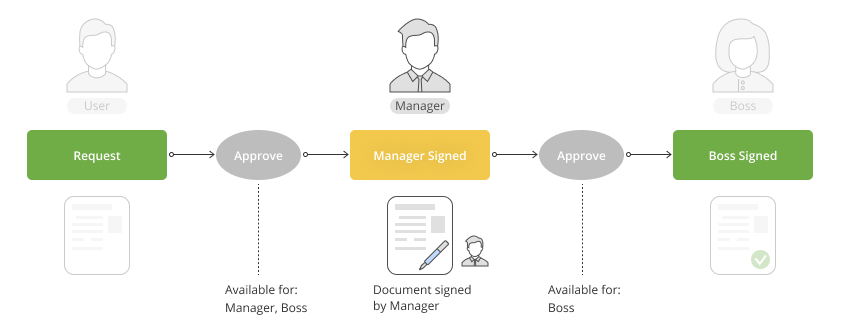

Current state: Manager signed (After manager approve)

6

After the first approval, the ApprovalHistory, Inbox, Outbox look as follows:

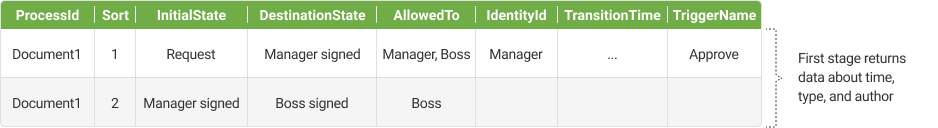

Approval history

7

Inbox

For Manager:

8

For Boss:

9

Outbox

For Manager:

10

For Boss:

11

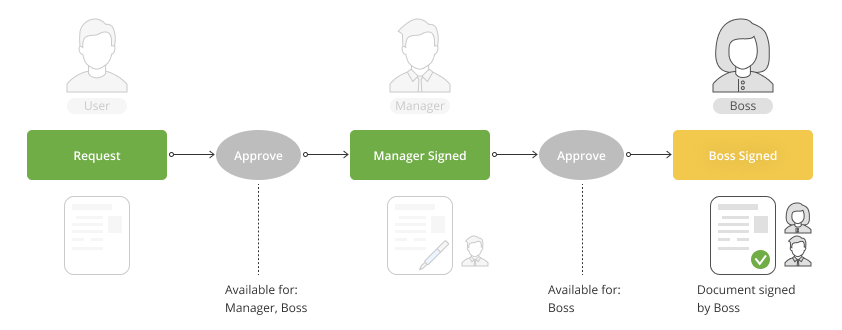

Current state: boss signined (After boss approve)

12

At the final stage, the ApprovalHistory, Inbox, Outbox tables look as follows:

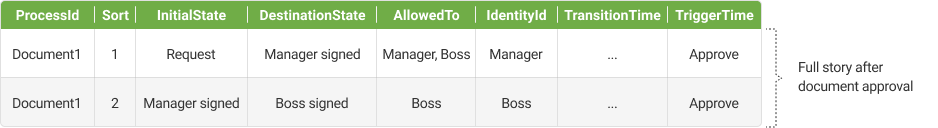

Approval history

13

Inbox

For Manager:

08

For Boss:

08

Outbox

For Manager:

10

For Boss:

14

Installation and settings

Table of contents

Add the following namespaces to the section of the using statements:

using OptimaJet.Workflow.Plugins;

Create a plugin object and specify the necessary settings:

var approvalPlugin = new ApprovalPlugin();

// Here are your settings

// approvalPlugin.GetUserNamesByIds += GetMyUserNamesByIds;
// approvalPlugin.AutoApprovalHistory = false;
// NameParameterForComment = "Comment";

Connect the plugin to WorkflowRuntime:

var runtime = new WorkflowRuntime()...

runtime.WithPlugin(approvalPlugin);

Read about Settings.

Cases

How to get list of users who can approve document

Table of contents

  1. Install and configure plugin
  2. Get inbox
//get by ProcessId
var inbox  = runtime.PersistenceProvider.GetInboxByProcessIdAsync(myProcessId, Paging.Create(pageIndex, pageSize));
//get count for paging
var inboxCount  = runtime.PersistenceProvider.GetInboxCountByProcessIdAsync(myProcessId);
  1. Get users
//get employee for every one inbox item
var identityIdS = inbox.Select(x => x.IdentityId).ToList();
var identities = employeeRepository.GetByIds(identityIdS);

//or

var identities = new List<Employee>();
foreach (InboxItem inboxItem in inbox)
{
    Employee employee = employeeRepository.Get(inboxItem.IdentityId);
    identities.Add(employee);
}

How to get list of documents that can be approved by user

Table of contents

  1. Install and configure plugin

  2. Get inbox

//get by IdentityId
var inbox  = runtime.PersistenceProvider.GetInboxCountByIdentityIdAsync(myIdentityId, Paging.Create(pageIndex, pageSize));
//get count for paging
var inboxCount = runtime.PersistenceProvider.GetInboxCountByIdentityIdAsync(myIdentityId);
  1. Get documents
//get document for every one inbox item
var processIds = inbox.Select(x => x.ProcessId).ToList();
documentRepository.GetByIds(processIds);

//or

var documents = new List<Document>();
foreach (InboxItem inboxItem in inbox)
{
    Document document = documentRepository.Get(inboxItem.ProcessId);
    documents.Add(document);
}

How to get approval history of document

Table of contents

  1. Install and configure plugin

  2. Get approvalHistory

//get by ProcessId
var approvalHistory  = runtime.PersistenceProvider.GetApprovalHistoryByProcessIdAsync(myProcessId, Paging.Create(pageIndex, pageSize));
//get count for paging
var approvalHistoryCount  = runtime.PersistenceProvider.GetApprovalHistoryCountByProcessIdAsync(myProcessId);

How to get list of documents approved by user

Table of contents

  1. Install and configure plugin

  2. Get outbox

//get by IdentityId
var outbox  = runtime.PersistenceProvider.GetOutboxByIdentityIdAsync(myIdentityId, Paging.Create(pageIndex, pageSize));
//get count for paging
var outboxCount = runtime.PersistenceProvider.GetOutboxCountByIdentityIdAsync(myIdentityId);
  1. Get documents
//get document for every one outbox item
var processIds = outbox.Select(x => x.ProcessId).ToList();
documentRepository.GetByIds(processIds);

//or

var documents = new List<Document>();
foreach (OutboxItem outboxItem in outbox)
{
    Document document = documentRepository.Get(outboxItem.ProcessId);
    documents.Add(document);
}
