Overview​

In this guide we will explain how to integrate Workflow Engine with React. We will create two applications:

  1. Backend - an ASP.NET application with Workflow Engine and Controllers.
  2. Frontend - a React application with Workflow Designer and simple admin panel.

We will create a process scheme that will do the following:

  1. Run and wait for the user to execute a command GetWeatherForecast to receive a weather forecast. Getting the weather forecast will be done with a custom action.
  2. After receiving the weather forecast, the process will wait for a command SendWeatherForecast from the user to send the weather forecast by e-mail.
  3. After the email is sent, the process ends and can be restarted with the ReRun command.

To get the weather forecast we will use Open-Meteo API.

We will also restrict the execution of commands:

  1. The GetWeatherForecast command can be executed by users with the 'User' role.
  2. The SendWeatherForecast command can be executed by users with the 'Manager' role.
  3. The ReRun command can be executed by users without the 'User' role.

Prerequisites​

  1. Docker.
  2. .NET 6.
  3. JetBrains Rider or Visual Studio.
  4. NodeJS.
  5. JetBrains IDEA or Visual Studio Code or another tool to edit JavaScript code.
  6. Console.

Create a database for the Workflow Engine​

First, we need a database. We will use the docker container azure-sql-edge because it works on ARM64.

Open the console and run the following commands to start the database:

docker pull mcr.microsoft.com/azure-sql-edge:latest
docker run --cap-add SYS_PTRACE -e 'ACCEPT_EULA=1' -e 'MSSQL_SA_PASSWORD=StrongPassword#1' -p 1433:1433 --name azuresqledge -d mcr.microsoft.com/azure-sql-edge

We now have a master database with login sa and password StrongPassword#1 running on port 1433.

Now connect to the database with your favorite tool and execute SQL script .

Create a backend application​

OK. Now we have a database. Let's create a backend application. To create a backend application, we will create a .NET 6 solution. Then add two projects for this solution:

  1. WorkflowLib is the library that contains the Workflow Engine.
  2. WorkflowApi is an ASP.NET project with an API for the Workflow Engine.

It's all covered in the How to integrate guide, so let's just copy and paste with different project names:

Let's create a folder for our example and go into it:

mkdir react-example
cd react-example

Then create a Backend folder and go into it, create an empty solution and add the WorkflowLib library to the solution. Also add a WorkflowApi MVC project and add it to the solution:

mkdir Backend
cd Backend
dotnet new sln
dotnet new classlib --name WorkflowLib
dotnet sln add WorkflowLib
dotnet new mvc --name WorkflowApi
dotnet sln add WorkflowApi
dotnet add WorkflowApi reference WorkflowLib

Great, now we have two projects: WorkflowLib and WorkflowApi. The WorkflowApi project references the WorkflowLib project. Let's add the dependencies for the nuget Workflow Engine packages to these projects:

  1. WorkflowEngine.NETCore-Core.
  2. WorkflowEngine.NETCore-ProviderForMSSQL.
dotnet add WorkflowLib package WorkflowEngine.NETCore-Core
dotnet add WorkflowLib package WorkflowEngine.NETCore-ProviderForMSSQL
dotnet add WorkflowApi package WorkflowEngine.NETCore-Core
dotnet add WorkflowApi package WorkflowEngine.NETCore-ProviderForMSSQL

Setting a port for the backend​

Now it's time to open the Backend solution in your favorite IDE. We will be using JetBrains Rider.

Now we will change the port for running the backend to 5139, since the dotnet CLI can install another port during the project generation process. Open the launchSettings.json file in the Properties folder of the WorkflowApi project and enter the value http://localhost:5139, as in the example below:

Backend/WorkflowApi/Properties/launchSettings.json
{
  "iisSettings": {
    "windowsAuthentication": false,
    "anonymousAuthentication": true,
    "iisExpress": {
      "applicationUrl": "http://localhost:25849",
      "sslPort": 44372
    }
  },
  "profiles": {
    "http": {
      "commandName": "Project",
      "dotnetRunMessages": true,
      "launchBrowser": true,
      "applicationUrl": "http://localhost:5139",
      "environmentVariables": {
        "ASPNETCORE_ENVIRONMENT": "Development"
      }
    },
    "https": {
      "commandName": "Project",
      "dotnetRunMessages": true,
      "launchBrowser": true,
      "applicationUrl": "https://localhost:7228;http://localhost:5139",
      "environmentVariables": {
        "ASPNETCORE_ENVIRONMENT": "Development"
      }
    },
    "IIS Express": {
      "commandName": "IISExpress",
      "launchBrowser": true,
      "environmentVariables": {
        "ASPNETCORE_ENVIRONMENT": "Development"
      }
    }
  }
}

Create a simple user model​

In our tutorial, we will use a simple user model. There will be four users: Peter, Margaret, John and Sam. And only two roles: User and Manager. To describe a user, we'll use a simple User class containing the user's name and a list of their roles.

Let's add the User class to our WorkflowLib project:

Backend/WorkflowLib/User.cs
namespace WorkflowLib;

public class User
{
    public string Name { get; set; }
    public List<string> Roles { get; set; }
}

Next, add a Users class containing our users:

Backend/WorkflowLib/Users.cs
namespace WorkflowLib;

public static class Users
{
    public static readonly List<User> Data = new()
    {
        new User {Name = "Peter", Roles = new List<string> {"User", "Manager"}},
        new User {Name = "Margaret", Roles = new List<string> {"User"}},
        new User {Name = "John", Roles = new List<string> {"Manager"}},
        new User {Name = "Sam", Roles = new List<string> {"Manager"}},
    };

    public static readonly Dictionary<string, User> UserDict = Data.ToDictionary(u => u.Name);
}

To get the user by their name, we will use the UserDict field.

Connecting WorkflowLib to Workflow Engine​

First, remove the Class1 class from the WorkflowLib project. We just don't need this class generated by the dotnet CLI.

Second, add WorkflowInit class, like in How to integrate tutorial. We will use a slightly modified example of this class now:

Backend/WorkflowLib/WorkflowInit.cs
using System.Xml.Linq;
using OptimaJet.Workflow.Core;
using OptimaJet.Workflow.Core.Builder;
using OptimaJet.Workflow.Core.Parser;
using OptimaJet.Workflow.Core.Runtime;
using OptimaJet.Workflow.DbPersistence;
using OptimaJet.Workflow.Plugins;

namespace WorkflowLib;

public static class WorkflowInit
{
    private const string ConnectionString = "Data Source=(local);Initial Catalog=master;User ID=sa;Password=StrongPassword#1";

    private static readonly Lazy<WorkflowRuntime> LazyRuntime = new(InitWorkflowRuntime);
    private static readonly Lazy<MSSQLProvider> LazyProvider = new(InitMssqlProvider);

    public static WorkflowRuntime Runtime => LazyRuntime.Value;
    public static MSSQLProvider Provider => LazyProvider.Value;

    private static MSSQLProvider InitMssqlProvider()
    {
        return new MSSQLProvider(ConnectionString);
    }

    private static WorkflowRuntime InitWorkflowRuntime()
    {
        // TODO If you have a license key, you have to register it here
        //WorkflowRuntime.RegisterLicense("your license key text");

        var builder = new WorkflowBuilder<XElement>(
            Provider,
            new XmlWorkflowParser(),
            Provider
        ).WithDefaultCache();

        // we need BasicPlugin to send email
        var basicPlugin = new BasicPlugin
        {
            Setting_MailserverFrom = "mail@gmail.com",
            Setting_Mailserver = "smtp.gmail.com",
            Setting_MailserverSsl = true,
            Setting_MailserverPort = 587,
            Setting_MailserverLogin = "mail@gmail.com",
            Setting_MailserverPassword = "Password"
        };
        var runtime = new WorkflowRuntime()
            .WithPlugin(basicPlugin)
            .WithBuilder(builder)
            .WithPersistenceProvider(Provider)
            .EnableCodeActions()
            .SwitchAutoUpdateSchemeBeforeGetAvailableCommandsOn()
            // add custom activity
            .WithCustomActivities(new List<ActivityBase> {new WeatherActivity()})
            // add custom rule provider
            .WithRuleProvider(new SimpleRuleProvider())
            .AsSingleServer();

        // events subscription
        runtime.OnProcessActivityChangedAsync += (sender, args, token) => Task.CompletedTask;
        runtime.OnProcessStatusChangedAsync += (sender, args, token) => Task.CompletedTask;

        runtime.Start();

        return runtime;
    }
}

With the WorkflowInit class, we can access the WorkflowRuntime with the WorkflowInit.Runtime statement and the MSSQLProvider database provider with the WorkflowInit.Provider statement.

We have also initialized the BasicPlugin for sending email, fill in its properties with your settings. We also added a custom activity WeatherActivity and a rule provider SimpleRuleProvider. These classes will be added later.

Adding a custom activity​

The process of adding a custom activity is described here. We'll add a custom activity called WeatherActivity that gets the weather forecast and stores the result in process variables.

Add the WeatherActivity class to the WorkflowLib project:

Backend/WorkflowLib/WeatherActivity.cs
using System.Net;
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
using OptimaJet.Workflow.Core;
using OptimaJet.Workflow.Core.Model;
using OptimaJet.Workflow.Core.Runtime;

namespace WorkflowLib;

public sealed class WeatherActivity : ActivityBase
{
    public WeatherActivity()
    {
        Type = "WeatherActivity";
        Title = "Weather forecast";
        Description = "Get weather forecast via API";

        // the file name with your form template, without extension
        Template = "weatherActivity";
        // the file name with your svg template, without extension
        SVGTemplate = "weatherActivity";
    }

    public override async Task ExecutionAsync(WorkflowRuntime runtime, ProcessInstance processInstance,
        Dictionary<string, string> parameters, CancellationToken token)
    {
        const string url = "https://api.open-meteo.com/v1/forecast?latitude=52.52&longitude=13.41&daily=temperature_2m_min&timezone=GMT";
        using var httpClient = new HttpClient();
        var response = await httpClient.GetAsync(url, token);
        if (response.StatusCode == HttpStatusCode.OK)
        {
            await using var stream = await response.Content.ReadAsStreamAsync(token);
            using var streamReader = new StreamReader(stream);
            var data = await streamReader.ReadToEndAsync();
            var json = JsonConvert.DeserializeObject<JObject>(data);
            var daily = json?["daily"];
            var date = daily?["time"]?[0] ?? "Date is not defined";
            var temperature = daily?["temperature_2m_min"]?[0] ?? "Temperature is not defined";

            // store the entire response to the Weather process parameter
            await processInstance.SetParameterAsync("Weather", json, ParameterPurpose.Persistence);
            // store the weather date in the WeatherDate process parameter
            await processInstance.SetParameterAsync("WeatherDate", date, ParameterPurpose.Persistence);
            // store the temperature in the process parameter WeatherTemperature
            await processInstance.SetParameterAsync("WeatherTemperature", temperature, ParameterPurpose.Persistence);
        }
    }

    public override async Task PreExecutionAsync(WorkflowRuntime runtime, ProcessInstance processInstance,
        Dictionary<string, string> parameters, CancellationToken token)
    {
        // do nothing
    }
}

All code is in the ExecutionAsync method. This method will be executed when the activity becomes active.

Adding RuleProvider​

To restrict the execution of transitions, we need to implement the IWorkflowRuleProvider interface. You can read more about Rules here.

In this tutorial, we will create a simple implementation of the IWorkflowRuleProvider interface that will check user roles.

Add the SimpleRuleProvider class to the WorkflowLib project:

Backend/WorkflowLib/SimpleRuleProvider.cs
using OptimaJet.Workflow.Core.Model;
using OptimaJet.Workflow.Core.Runtime;

namespace WorkflowLib;

public class SimpleRuleProvider : IWorkflowRuleProvider
{
    // name of our rule
    private const string RuleCheckRole = "CheckRole";

    public List<string> GetRules(string schemeCode, NamesSearchType namesSearchType)
    {
        return new List<string> {RuleCheckRole};
    }

    public bool Check(ProcessInstance processInstance, WorkflowRuntime runtime, string identityId, string ruleName, string parameter)
    {
        // we check that the identityId satisfies our rule, that is, the user has the role specified in the parameter

        if (RuleCheckRole != ruleName || identityId == null || !Users.UserDict.ContainsKey(identityId)) return false;

        var user = Users.UserDict[identityId];
        return user.Roles.Contains(parameter);
    }

    public async Task<bool> CheckAsync(ProcessInstance processInstance, WorkflowRuntime runtime, string identityId, string ruleName,
        string parameter,
        CancellationToken token)
    {
        throw new NotImplementedException();
    }

    public IEnumerable<string> GetIdentities(ProcessInstance processInstance, WorkflowRuntime runtime, string ruleName, string parameter)
    {
        // return all identities (the identity is user name)
        return Users.Data.Select(u => u.Name);
    }

    public async Task<IEnumerable<string>> GetIdentitiesAsync(ProcessInstance processInstance, WorkflowRuntime runtime, string ruleName,
        string parameter,
        CancellationToken token)
    {
        throw new NotImplementedException();
    }

    public bool IsCheckAsync(string ruleName, string schemeCode)
    {
        // use the Check method instead of CheckAsync
        return false;
    }

    public bool IsGetIdentitiesAsync(string ruleName, string schemeCode)
    {
        // use the GetIdentities method instead of GetIdentitiesAsync
        return false;
    }
}

The SimpleRuleProvider class is quite simple, check the comments in the code.

Connecting WorkflowApi with Designer controller​

The next thing we need is the Designer controller. This controller will respond to Workflow Designer HTTP requests. Let's copy and paste controller code from the tutorial How to integrate into the WorkfowApi project in the Controller folder:

Backend/WorkflowApi/Controllers/DesignerController.cs
using System.Collections.Specialized;
using System.Text;
using Microsoft.AspNetCore.Mvc;
using OptimaJet.Workflow;
using WorkflowLib;

namespace WorkflowApi.Controllers;

public class DesignerController : Controller
{
    public async Task<IActionResult> Api()
    {
        Stream? filestream = null;
        var parameters = new NameValueCollection();

        //Defining the request method
        var isPost = Request.Method.Equals("POST", StringComparison.OrdinalIgnoreCase);

        //Parse the parameters in the query string
        foreach (var q in Request.Query)
        {
            parameters.Add(q.Key, q.Value.First());
        }

        if (isPost)
        {
            //Parsing the parameters passed in the form
            var keys = parameters.AllKeys;

            foreach (var key in Request.Form.Keys)
            {
                if (!keys.Contains(key))
                {
                    parameters.Add(key, Request.Form[key]);
                }
            }

            //If a file is passed
            if (Request.Form.Files.Count > 0)
            {
                //Save file
                filestream = Request.Form.Files[0].OpenReadStream();
            }
        }

        //Calling the Designer Api and store answer
        var (result, hasError) = await WorkflowInit.Runtime.DesignerAPIAsync(parameters, filestream);

        //If it returns a file, send the response in a special way
        if (parameters["operation"]?.ToLower() == "downloadscheme" && !hasError)
            return File(Encoding.UTF8.GetBytes(result), "text/xml");

        if (parameters["operation"]?.ToLower() == "downloadschemebpmn" && !hasError)
            return File(Encoding.UTF8.GetBytes(result), "text/xml");

        //response
        return Content(result);
    }
}

Let's check that the solution works now. Run this command in a shell:

dotnet run --project WorkflowApi

And you should see something like this in your console:

Building...
info: Microsoft.Hosting.Lifetime[14]
      Now listening on: http://localhost:5139
info: Microsoft.Hosting.Lifetime[0]
      Application started. Press Ctrl+C to shut down.
info: Microsoft.Hosting.Lifetime[0]
      Hosting environment: Development
info: Microsoft.Hosting.Lifetime[0]
      Content root path: /Users/aksanaazarenka/projects/optimajet/temp/react-example/Backend/WorkflowApi/
warn: Microsoft.AspNetCore.HttpsPolicy.HttpsRedirectionMiddleware[3]
      Failed to determine the https port for redirect.

You could open your browser at http://localhost:5139 (in your case address may be different) and see usual ASP.NET MVC welcome page. Now stop the application (Ctrl+C).

Adding CORS​

Since we will be running our frontend application at a different address, we need to add CORS to the WorkflowApi project. To do this, we need to modify the Program class by adding the highlighted code, for example:

Backend/WorkflowApi/Program.cs
var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddControllersWithViews();

const string rule = "MyCorsRule";
builder.Services.AddCors(options =>
{
    options.AddPolicy(rule, policy => policy.AllowAnyOrigin());
});

var app = builder.Build();

// Configure the HTTP request pipeline.
if (!app.Environment.IsDevelopment())
{
    app.UseExceptionHandler("/Home/Error");
    // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
    app.UseHsts();
}

app.UseHttpsRedirection();
app.UseStaticFiles();

app.UseRouting();
app.UseCors(rule);

app.UseAuthorization();

app.MapControllerRoute(
    name: "default",
    pattern: "{controller=Home}/{action=Index}/{id?}");

app.Run();

Creating a user controller​

Let's add a controller to display all users via the HTTP API. To do this, we need to create a simple UserController controller class. in the WorkflowApi project in the Controllers folder:

Backend/WorkflowApi/Controllers/UserController.cs
using Microsoft.AspNetCore.Mvc;
using WorkflowLib;

namespace WorkflowApi.Controllers;

[Route("api/user")]
public class UserController : ControllerBase
{
    [HttpGet]
    [Route("all")]
    public async Task<IActionResult> GetUsers()
    {
        return Ok(Users.Data);
    }
}

Testing user controller​

Now we want to make sure that users are returned via the HTTP API. Let's start our application:

dotnet run --project WorkflowApi

And open your browser at http://localhost:5139/api/user/all.

You should see something similar to this JSON:

[
  {
    "name": "Peter",
    "roles": [
      "User",
      "Manager"
    ]
  },
  {
    "name": "Margaret",
    "roles": [
      "User"
    ]
  },
  {
    "name": "John",
    "roles": [
      "Manager"
    ]
  },
  {
    "name": "Sam",
    "roles": [
      "Manager"
    ]
  }
]

Now stop the application (Ctrl+C).

Create DTO classes​

Since we want to control the workflow with a React app, we need to add a controller to the backend that we can call later. In that controller, we will add methods to get schemas and process instances. We will need methods to execute commands and get the current status of the process instance. We also need DTO classes that will be sent via the HTTP API.

To describe the scheme of the process, we will use a simple DTO class WorkflowSchemeDto with just two properties:

  1. Code - scheme code. This is a unique scheme code and is used when you need to start a process.
  2. Tags - scheme tags. You can read more about tags in our documentation.

The WorkflowSchemeDto class is a partial copy of SchemeEntity class. Add the WorkflowSchemeDto class to the WorkflowApi project:

Backend/WorkflowApi/Models/WorkflowSchemeDto.cs
namespace WorkflowApi.Models;

public class WorkflowSchemeDto
{
    public string Code { get; set; }
    public string Tags { get; set; }
}

To describe process instances, we will use the WorkflowProcessDto class with the following properties:

  1. Id - unique identifier of the process.
  2. Scheme - scheme code, the value is the same as in the WorkflowSchemeDto.Code property.
  3. StateName - process state.
  4. ActivityName - current activity name.
  5. CreationDate - the date and time the process was created.

Add the WorkflowProcessDto class to the WorkflowApi project:

Backend/WorkflowApi/Models/WorkflowProcessDto.cs
namespace WorkflowApi.Models;

public class WorkflowProcessDto
{
    public string Id { get; set; }
    public string Scheme { get; set; }
    public string StateName { get; set; }
    public string ActivityName { get; set; }
    public string CreationDate { get; set; }
}

To describe the available commands for a process instance, we will use another DTO named WorkflowProcessCommandsDto. It will contain the following properties:

  1. Id - unique identifier of the process.
  2. Commands - list of available commands for the process instance.

Add the WorkflowProcessCommandsDto class to the WorkflowApi project:

Backend/WorkflowApi/Models/WorkflowProcessCommandsDto.cs
namespace WorkflowApi.Models;

public class WorkflowProcessCommandsDto
{
    public string Id { get; set; }
    public List<string> Commands { get; set; }
}

Create workflow controller​

Now we have all the DTO classes, it's time to add a controller that will serve the data from the Workflow Engine. This controller will have several methods:

  1. Schemes - returns workflow schemes.
  2. Instances - returns process instances.
  3. CreateInstance - to create an instance of the process.
  4. Commands - returns the available commands of the process instance.
  5. ExecuteCommand - to execute the process instance command.

For the simplicity we will use MSSQLProvider to fetch the data from the database. This class has basic functionality, if you want to create complex database queries, for example JOIN, you'd better use something like Entity Framework.

Let's add the WorkflowController class to the WorkflowApi project. To understand how this class works, read the comments in the code.

Backend/WorkflowApi/Controllers/WorkflowController.cs
using System.Globalization;
using Microsoft.AspNetCore.Mvc;
using OptimaJet.Workflow.Core.Entities;
using OptimaJet.Workflow.Core.Persistence;
using WorkflowApi.Models;
using WorkflowLib;

namespace WorkflowApi.Controllers;

[Route("api/workflow")]
public class WorkflowController : ControllerBase
{
    /// <summary>
    /// Returns process schemes from the database
    /// </summary>
    /// <returns>Process schemes</returns>
    [HttpGet]
    [Route("schemes")]
    public async Task<IActionResult> Schemes()
    {
        // getting a connection to the database
        await using var connection = WorkflowInit.Provider.OpenConnection();
        // creating parameters for the "ORDER BY" clause
        var orderParameters = new List<(string parameterName, SortDirection sortDirection)>
        {
            ("Code", SortDirection.Asc)
        };
        // creating parameters for the "LIMIT" and "OFFSET" clauses
        var paging = Paging.Create(0, 200);
        // getting schemes from the database
        var list = await WorkflowInit.Provider.WorkflowScheme
            .SelectAllWorkflowSchemesWithPagingAsync(connection, orderParameters, paging);

        // converting schemes to DTOs
        var results = list.Select(s => new WorkflowSchemeDto
        {
            Code = s.Code,
            Tags = s.Tags
        });
        return Ok(results);
    }

    /// <summary>
    /// Returns process instances from the database
    /// </summary>
    /// <returns>Process instances</returns>
    [HttpGet]
    [Route("instances")]
    public async Task<IActionResult> Instances()
    {
        // getting a connection to the database
        await using var connection = WorkflowInit.Provider.OpenConnection();
        // creating parameters for the "ORDER BY" clause
        var orderParameters = new List<(string parameterName, SortDirection sortDirection)>
        {
            ("CreationDate", SortDirection.Desc)
        };
        // creating parameters for the "LIMIT" and "OFFSET" clauses
        var paging = Paging.Create(0, 200);
        // getting process instances from the database
        var processes = await WorkflowInit.Provider.WorkflowProcessInstance
            .SelectAllWithPagingAsync(connection, orderParameters, paging);

        // converting process instances to DTOs
        var result = processes.Select(async p =>
            {
                // getting process scheme from another table to get SchemeCode
                var schemeEntity = await WorkflowInit.Provider.WorkflowProcessScheme.SelectByKeyAsync(connection, p.SchemeId!);
                // converting process instances to DTO
                return ConvertToWorkflowProcessDto(p, schemeEntity.SchemeCode);
            })
            .Select(t => t.Result)
            .ToList();

        return Ok(result);
    }

    /// <summary>
    /// Creates a process instance for the process scheme
    /// </summary>
    /// <param name="schemeCode">Process scheme code</param>
    /// <returns>Process instance</returns>
    [HttpGet]
    [Route("createInstance/{schemeCode}")]
    public async Task<IActionResult> CreateInstance(string schemeCode)
    {
        // generating a new processId
        var processId = Guid.NewGuid();
        // creating a new process instance
        await WorkflowInit.Runtime.CreateInstanceAsync(schemeCode, processId);

        // getting a connection to the database
        await using var connection = WorkflowInit.Provider.OpenConnection();
        // getting process instance from the database
        var processInstanceEntity = await WorkflowInit.Provider.WorkflowProcessInstance
            .SelectByKeyAsync(connection, processId);

        // converting process instances to DTO
        var workflowProcessDto = ConvertToWorkflowProcessDto(processInstanceEntity, schemeCode);
        return Ok(workflowProcessDto);
    }

    /// <summary>
    /// Returns process instance commands
    /// </summary>
    /// <param name="processId">Unique process identifier</param>
    /// <param name="identityId">Command executor identifier</param>
    /// <returns></returns>
    [HttpGet]
    [Route("commands/{processId:guid}/{identityId}")]
    public async Task<IActionResult> Commands(Guid processId, string identityId)
    {
        // getting a process instance and its parameters
        var process = await WorkflowInit.Runtime.GetProcessInstanceAndFillProcessParametersAsync(processId);
        // getting available commands for a process instance
        var commands = await WorkflowInit.Runtime.GetAvailableCommandsAsync(processId, identityId);
        // convert process instance commands to a list of strings
        var commandNames = commands?.Select(c => c.CommandName).ToList() ?? new List<string>();
        // creating the resulting DTO
        var dto = new WorkflowProcessCommandsDto
        {
            Id = process.ProcessId.ToString(),
            Commands = commandNames
        };
        return Ok(dto);
    }

    /// <summary>
    /// Executes a command on a process instance
    /// </summary>
    /// <param name="processId">Unique process identifier</param>
    /// <param name="command">Command</param>
    /// <param name="identityId">Command executor identifier</param>
    /// <returns>true if the command was executed, false otherwise</returns>
    [HttpGet]
    [Route("executeCommand/{processId:guid}/{command}/{identityId}")]
    public async Task<IActionResult> ExecuteCommand(Guid processId, string command, string identityId)
    {
        // getting available commands for a process instance
        var commands = await WorkflowInit.Runtime.GetAvailableCommandsAsync(processId, identityId);
        // search for the necessary command
        var workflowCommand = commands?.First(c => c.CommandName == command)
                              ?? throw new ArgumentException($"Command {command} not found");
        // executing the command
        var result = await WorkflowInit.Runtime.ExecuteCommandAsync(workflowCommand, identityId, null);
        return Ok(result.WasExecuted);
    }

    /// <summary>
    /// Converts ProcessInstanceEntity to WorkflowProcessDto
    /// </summary>
    /// <param name="processInstanceEntity">Process instance entity</param>
    /// <param name="schemeCode">Scheme code</param>
    /// <returns>WorkflowProcessDto</returns>
    private static WorkflowProcessDto ConvertToWorkflowProcessDto(ProcessInstanceEntity processInstanceEntity, string schemeCode)
    {
        var workflowProcessDto = new WorkflowProcessDto
        {
            Id = processInstanceEntity.Id.ToString(),
            Scheme = schemeCode,
            StateName = processInstanceEntity.StateName,
            ActivityName = processInstanceEntity.ActivityName,
            CreationDate = processInstanceEntity.CreationDate.ToString(CultureInfo.InvariantCulture)
        };
        return workflowProcessDto;
    }
}

Testing workflow controller​

Now let's check that the controller is working. Run this command in a shell:

dotnet run --project WorkflowApi

Then open your browser at http://localhost:5139/api/workflow/schemes. Then open your browser at http://localhost:5139/api/workflow/instances. In both pages you should see an empty JSON array in response:

[]

That's OK because we don't have any process schemes or process instances in our database. Stop the application (Ctrl+C).

Creating frontend application​

It's time to write our second application, where there will be a list of schemes, processes, and a Workflow Designer with the ability to start a process and see its status. We will use create-react-app template to create a simple React application. Open your console and go to the folder react-example, then execute following commands:

npx create-react-app frontend
cd frontend
npm run start

You should see something similar in your console:

Compiled successfully!

You can now view frontend in the browser.

  Local:            http://localhost:3000
  On Your Network:  http://192.168.50.125:3000

Note that the development build is not optimized.
To create a production build, use npm run build.

webpack compiled successfully

Now open your browser at http://localhost:3000 (in your case address may be different) and you will see an example React application. Let's start hack it. First we will add a navigation bar to our application. We will use React Suite library.

Stop frontend application if its running (Ctrl+C). Open your console and execute command:

npm install rsuite

Then run frontend application again:

npm run start

Open frontend application in your favourite IDE. We will use JetBrains IDEA.

Adding settings to access backend APIs​

Add settings.js file under frontend src folder with the following content:

frontend/src/settings.js
const backendUrl = 'http://localhost:5139';

const settings = {
    workflowUrl: `${backendUrl}/api/workflow`,
    userUrl: `${backendUrl}/api/user`,
    designerUrl: `${backendUrl}/designer/API`
}

export default settings;

The settings object contains following properties:

  1. workflowUrl - URL to access workflow API, see WorkflowController class.
  2. userUrl - URL to access user API, see UserController class.
  3. designerUrl - URL to access Workflow Designer API, see DesignerController class.

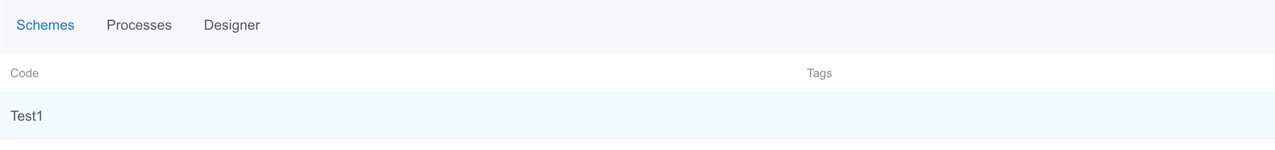

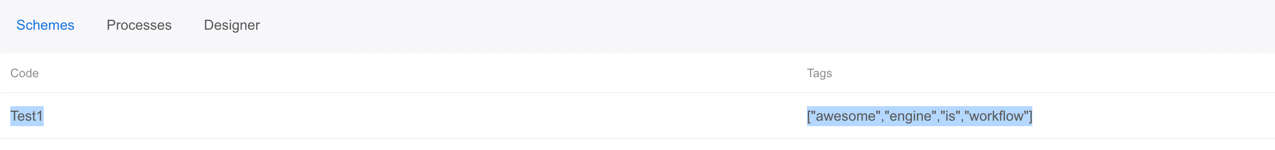

Adding schemes table​

We will now create a simple table to show the workflow schemes from our API. Add the Schemes.js file to the frontend src folder with the following content:

frontend/src/Schemes.js
import {Table} from "rsuite";
import {useEffect, useState} from "react";
import settings from "./settings";

const {Column, HeaderCell, Cell} = Table;

const Schemes = (props) => {
    const [data, setData] = useState([]);

    useEffect(() => {
        fetch(`${settings.workflowUrl}/schemes`)
            .then(response => response.json())
            .then(data => setData(data))
    }, []);

    return <Table data={data}
                  height={400}
                  onRowClick={rowData => props.onRowClick?.(rowData)}>
        <Column flexGrow={1}>
            <HeaderCell>Code</HeaderCell>
            <Cell dataKey="code"/>
        </Column>
        <Column flexGrow={1}>
            <HeaderCell>Tags</HeaderCell>
            <Cell dataKey="tags"/>
        </Column>
    </Table>
}

export default Schemes;

The React Schemes component simply shows the data in the Table and retrieves the data from the backend in the useEffect hook. The component calls the props.onRowClick function, if it was passed through props, when the user clicks a table row.

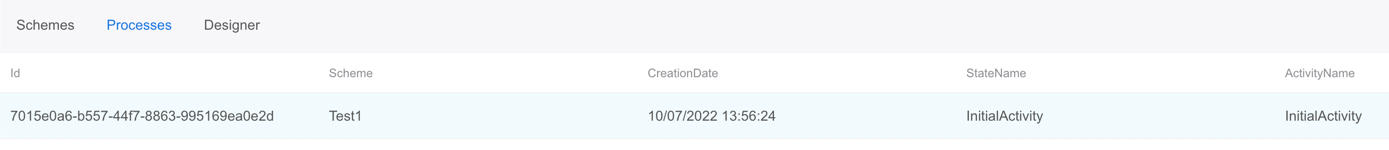

Adding process instance table​

Add the Processes.js file to the frontend src folder with the following content:

frontend/src/Processes.js
import {Table} from "rsuite";
import {useEffect, useState} from "react";
import settings from "./settings";

const {Column, HeaderCell, Cell} = Table;

const Processes = (props) => {
    const [data, setData] = useState([]);

    useEffect(() => {
        fetch(`${settings.workflowUrl}/instances`)
            .then(response => response.json())
            .then(data => setData(data))
    }, []);

    return <Table data={data}
                  height={400}
                  onRowClick={rowData => props.onRowClick?.(rowData)}>
        <Column flexGrow={1}>
            <HeaderCell>Id</HeaderCell>
            <Cell dataKey="id"/>
        </Column>
        <Column flexGrow={1}>
            <HeaderCell>Scheme</HeaderCell>
            <Cell dataKey="scheme"/>
        </Column>
        <Column flexGrow={1}>
            <HeaderCell>CreationDate</HeaderCell>
            <Cell dataKey="creationDate"/>
        </Column>
        <Column flexGrow={1}>
            <HeaderCell>StateName</HeaderCell>
            <Cell dataKey="stateName"/>
        </Column>
        <Column flexGrow={1}>
            <HeaderCell>ActivityName</HeaderCell>
            <Cell dataKey="activityName"/>
        </Column>
    </Table>
}

export default Processes;

The React Processes component works the same way as the Schemes component, but for process instances. Pay attention to useState, useEffect hooks and the onRowClick property.

Adding users SelectPicker​

Now we need a component in which we can select the current user who will execute the process commands. Add the Users.js file to the frontend src folder with the following content:

frontend/src/Users.js
import {useEffect, useState} from "react";
import {SelectPicker} from "rsuite";
import settings from "./settings";

const Users = (props) => {
    const [users, setUsers] = useState([]);

    const onChangeUser = user => {
        props.onChangeUser?.(user);
    }

    useEffect(() => {
        fetch(`${settings.userUrl}/all`)
            .then(response => response.json())
            .then(data => {
                setUsers(data);
                onChangeUser(data[0].name)
            })
    }, []);

    const data = users.map(u => {
        const roles = u.roles.join(', ');
        return ({label: `${u.name} (${roles})`, value: u.name})
    });

    return <SelectPicker data={data} style={{width: 224}} menuStyle={{zIndex: 1000}}
                         value={props.currentUser} onChange={onChangeUser}/>
}

export default Users;

The Users component shows the users in the SelectPicker and calls the props.onChangeUser function if one was passed. Pay attention to useState, useEffect hooks.

Adding component to create schemes and load schemes​

Since Workflow Designer does not have a built-in component for selecting the current scheme, we will create it. Add the SchemeMenu.js file to the frontend src folder with the following content:

frontend/src/SchemeMenu.js
import {Button, ButtonGroup} from "rsuite";
import React from "react";

const SchemeMenu = (props) => {
    const onClick = () => {
        const newCode = prompt('Enter scheme name');
        if (newCode) {
            props.onNewScheme?.(newCode);
        }
    }

    return <ButtonGroup>
        <Button disabled={true}>Scheme name: {props.schemeCode}</Button>
        <Button onClick={onClick}>Create or load scheme</Button>
        <Button onClick={() => props.onCreateProcess?.()}>Create process</Button>
    </ButtonGroup>
}

export default SchemeMenu;

The SchemeMenu component shows ButtonGroup with three buttons:

  1. Disabled button with current scheme name from property props.schemeCode.
  2. A button for creating a new or loading an existing scheme. The Workflow Designer checks if there is a scheme with the entered name, if the scheme exists, then it will load it, otherwise it will create a new one.
  3. A button to create a new process instance on selected scheme. This button will call the props.onCreateProcess function if it was passed to properties.

The SchemeMenu component calls the props.onNewScheme function if it was passed to the properties when changing the scheme name.

Adding component to executing process instance commands​

We need to show the available commands for the selected user and process instance. Let's create a component for this. Add the ProcessMenu.js file to the frontend src folder with the following content:

frontend/src/ProcessMenu.js
import React, {useEffect, useState} from "react";
import {Button, ButtonGroup, FlexboxGrid} from "rsuite";
import FlexboxGridItem from "rsuite/cjs/FlexboxGrid/FlexboxGridItem";
import settings from "./settings";
import Users from "./Users";

const ProcessMenu = (props) => {
    const [commands, setCommands] = useState([]);
    const [currentUser, setCurrentUser] = useState();

    const loadCommands = (processId, user) => {
        fetch(`${settings.workflowUrl}/commands/${processId}/${user}`)
            .then(result => result.json())
            .then(result => {
                setCommands(result.commands)
            })
    }

    const executeCommand = (command) => {
        fetch(`${settings.workflowUrl}/executeCommand/${props.processId}/${command}/${currentUser}`)
            .then(result => result.json())
            .then(() => {
                loadCommands(props.processId, currentUser);
                props.afterCommandExecuted?.();
            });
    }

    useEffect(() => {
        loadCommands(props.processId, currentUser);
    }, [props.processId, currentUser]);

    const buttons = commands.map(c => <Button key={c} onClick={() => executeCommand(c)}>{c}</Button>)

    return <FlexboxGrid>
        <FlexboxGridItem colspan={4}>
            <Users onChangeUser={setCurrentUser} currentUser={currentUser}/>
        </FlexboxGridItem>
        <FlexboxGridItem colspan={12}>
            <ButtonGroup>
                <Button disabled={true}>Commands:</Button>
                {buttons}
            </ButtonGroup>
        </FlexboxGridItem>
    </FlexboxGrid>
}

export default ProcessMenu;

The ProcessMenu component loads the available commands in the useEffect hook for props.processId and currentUser. Also pay attention to the loadCommands and executeCommand functions.

Adding Designer component​

Now we are ready to add a Workflow Designer component. Open your console in frontend folder and execute following command:

npm install @optimajet/workflow-designer-react --legacy-peer-deps

This will install latest npm package with a Workflow Designer for React. This npm package is wrapper around JavaScript Workflow Designer.

Add the Designer.js file to the frontend src folder with the following content:

frontend/src/Designer.js
import React, {useRef, useState} from "react";
import {Container} from "rsuite";
import WorkflowDesigner from "@optimajet/workflow-designer-react";
import settings from "./settings";
import SchemeMenu from "./SchemeMenu";
import ProcessMenu from "./ProcessMenu";

const Designer = (props) => {
    const {schemeCode, ...otherProps} = {props}
    const [code, setCode] = useState(props.schemeCode)
    const [processId, setProcessId] = useState(props.processId)
    const designerRef = useRef()

    const designerConfig = {
        renderTo: 'wfdesigner',
        apiurl: settings.designerUrl,
        templatefolder: '/templates/',
        widthDiff: 300,
        heightDiff: 100,
        showSaveButton: !processId
    };

    const createOrLoad = (code) => {
        setCode(code)
        setProcessId(null)
        const data = {
            schemecode: code,
            processid: undefined
        }
        const wfDesigner = designerRef.current.innerDesigner;
        if (wfDesigner.exists(data)) {
            wfDesigner.load(data);
        } else {
            wfDesigner.create(code);
        }
    }

    const refreshDesigner = () => {
        designerRef.current.loadScheme();
    }

    const onCreateProcess = () => {
        fetch(`${settings.workflowUrl}/createInstance/${code}`)
            .then(result => result.json())
            .then(data => {
                setProcessId(data.id)
                const params = {
                    schemecode: code,
                    processid: data.id
                };
                designerRef.current.innerDesigner.load(params,
                    () => console.log('Process loaded'),
                    error => console.error(error));
            });
    }

    return <Container style={{maxWidth: '80%', overflow: 'hidden'}}>
        {!processId &&
            <SchemeMenu {...otherProps} schemeCode={code}
                        onNewScheme={createOrLoad} onCreateProcess={onCreateProcess}/>
        }
        {!!processId && <ProcessMenu processId={processId} afterCommandExecuted={refreshDesigner}/>}
        <WorkflowDesigner
            schemeCode={code}
            processId={processId}
            designerConfig={designerConfig}
            ref={designerRef}
        />
    </Container>
}

export default Designer;

The Designer component does the following:

  1. Gets schemeCode and processId from props.
  2. Renders the WorkflowDesigner component.
  3. Renders the SchemeMenu component if processId is set.
  4. Renders the ProcessMenu component if processId is not set.

The ProcessMenu component is displayed when we are in "running process" mode, otherwise the SchemeMenu is displayed.

Adding a custom activity​

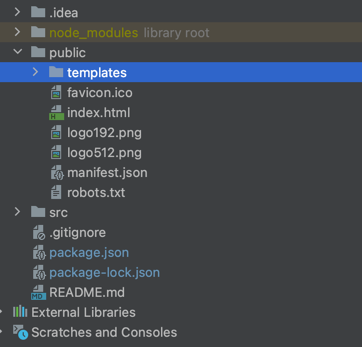

Copy the entire contents of the templates folder to the public/templates folder in your frontend project:

Templates folder

Copy the file public/templates/elements/activity.svg to public/templates/elements/weatherActivity.svg. The weatherActivity.svg file is the SVG template that will be displayed on the Canvas.

Copy the file public/templates/activity.html to public/templates/weatherActivity.html. The weatherActivity.html file represents the activity form. Open the weatherActivity.html file and change the name of the function activity_Init to weatherActivity_Init:

frontend/public/templates/weatherActivity.html
  ...
  function activity_Init(me) {
  function weatherActivity_Init(me) {
  ...

You can learn more about custom activity here.

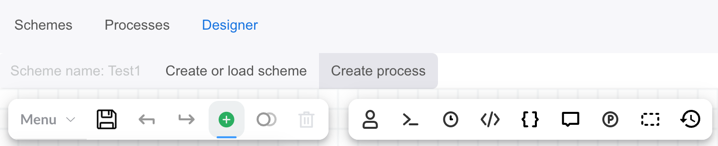

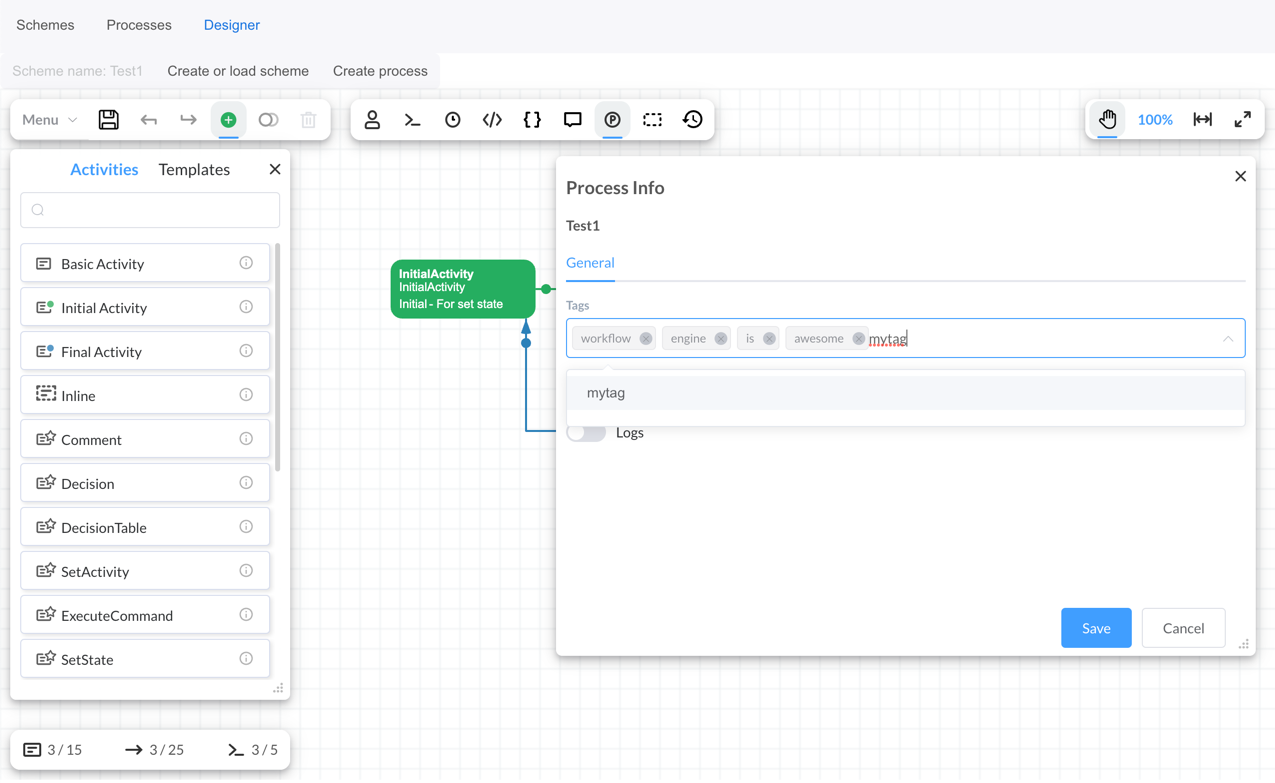

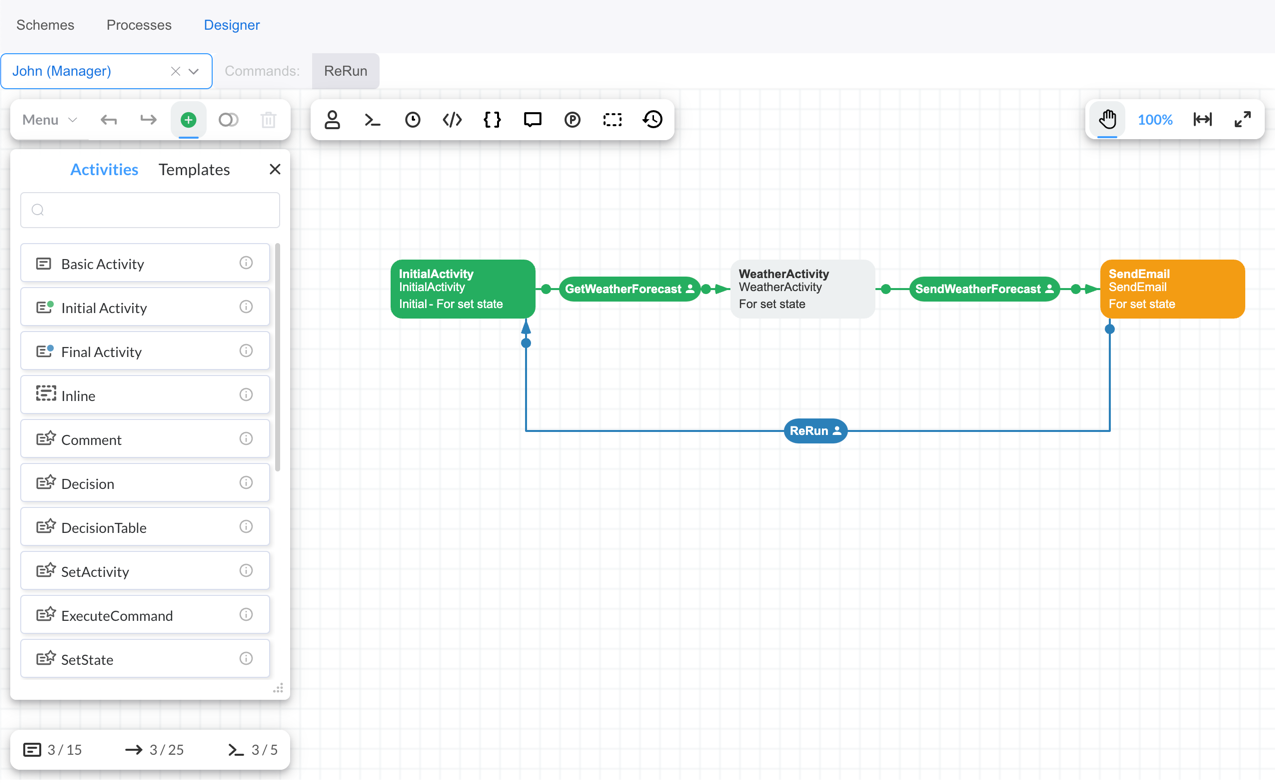

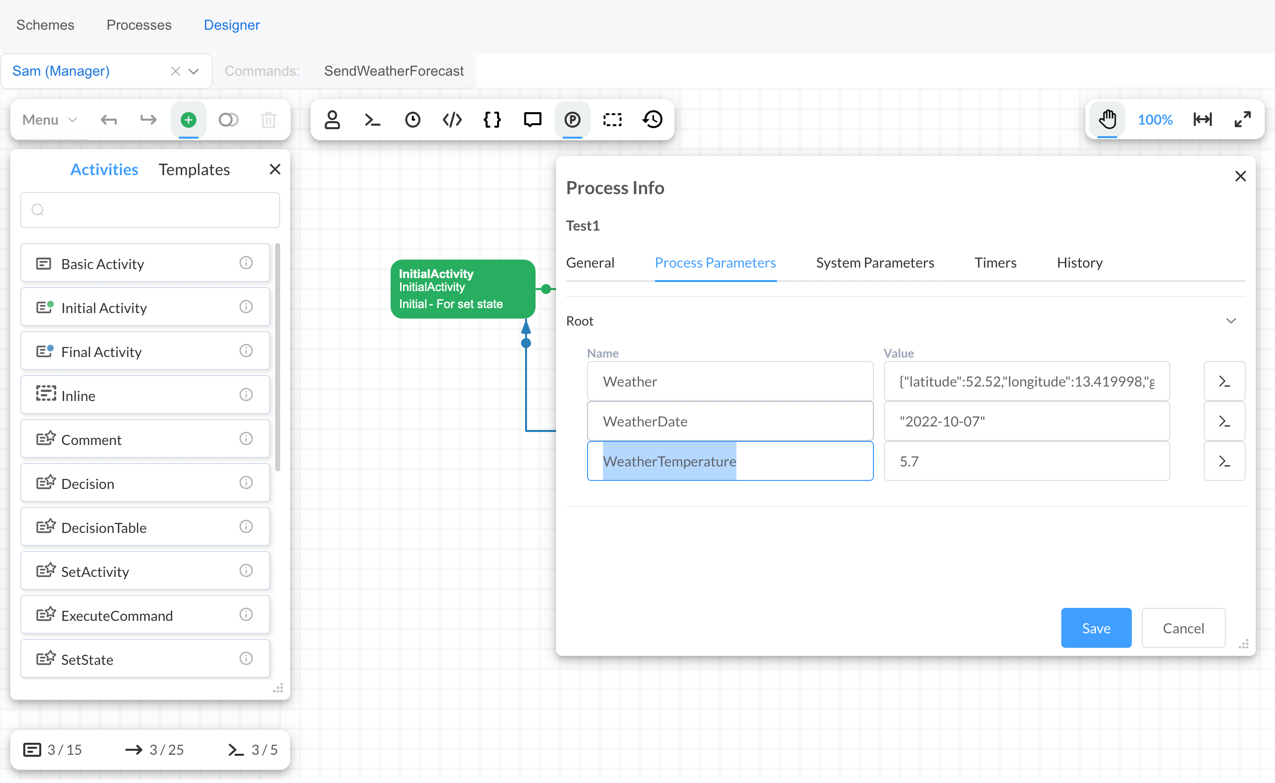

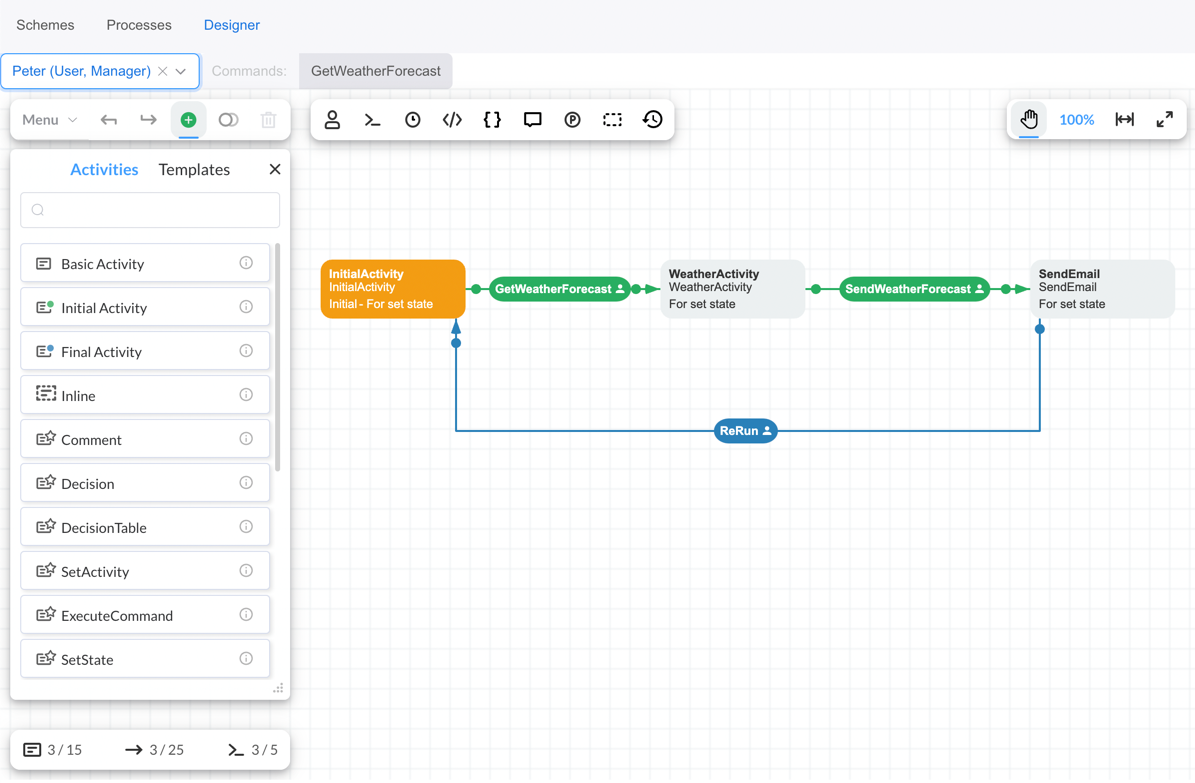

Combining all interface components together​

Now we have components to show schemes, process instances and a Workflow Designer. Let's combine these components together to show them on web page. Add the AppView.js file to the frontend src folder with the following content:

frontend/src/AppView.js
import {Container, Content, Header, Nav, Navbar} from "rsuite";
import React, {useState} from "react";
import Schemes from "./Schemes";
import Processes from "./Processes";
import Designer from "./Designer";

const navigationItems = [
    {name: 'Schemes', component: Schemes},
    {name: 'Processes', component: Processes},
    {name: 'Designer', component: Designer}
];

const AppView = () => {
    const [tab, setTab] = useState(navigationItems[0].name);
    const [schemeCode, setSchemeCode] = useState('Test1');
    const [processId, setProcessId] = useState();
    const items = navigationItems.map(
        item => <Nav.Item key={item.name} active={tab === item.name} onClick={() => setTab(item.name)}>{item.name}</Nav.Item>);
    const Child = navigationItems.find(item => item.name === tab)?.component
    const childProps = {
        onRowClick: (data) => {
            if (data.code) {
                setSchemeCode(data.code)
                setProcessId(undefined)
                setTab('Designer')
            } else if (data.id) {
                setSchemeCode(data.scheme);
                setProcessId(data.id);
                setTab('Designer')
            }
        },
        schemeCode: schemeCode,
        processId: processId
    }
    return <Container>
        <Header>
            <Navbar>
                <Nav>
                    {items}
                </Nav>
            </Navbar>
        </Header>
        <Content>
            <Child {...childProps}/>
        </Content>
    </Container>
}

export default AppView;

AppView component renders three tabs:

  1. Schemes - shows workflow schemes.
  2. Processes - shows process instances.
  3. Designer - shows the Workflow Designer with a scheme or process instance.

When the user clicks on the navigation element, the setTab function is executed and changes the active tab. Variable schemeCode contains the name of the current scheme, by default 'Test1'. The variable processId contains the unique identifier of the current process, by default undefined, which means that the process is not running.

Now open your index.js script and change its contents (changed lines are highlighted):

frontend/src/index.js
import React from 'react';
import ReactDOM from 'react-dom/client';
import './index.css';
import reportWebVitals from './reportWebVitals';
import 'rsuite/dist/rsuite.min.css';
import AppView from "./AppView";

const root = ReactDOM.createRoot(document.getElementById('root'));
root.render(
  <React.StrictMode>
    <AppView/>
  </React.StrictMode>
);

// If you want to start measuring performance in your app, pass a function
// to log results (for example: reportWebVitals(console.log))
// or send to an analytics endpoint. Learn more: https://bit.ly/CRA-vitals
reportWebVitals();

We now have a web interface that shows everything we need to display schemes, process instances, draw process schemes, and start processes.

Adding a process scheme​

Now start the backend application, execute the script from the Backend folder (if the application was already running - restart it):

dotnet run --project WorkflowApi

Then run the frontend application, execute the script from the frontend folder (if the application was already running - restart it):

npm run start

Now we need to load our scheme. To do this, save the following XML to the file Test1.xml.

Test1.xml
<Process Name="Test1" CanBeInlined="false" Tags="" LogEnabled="false">
  <Designer />
  <Actors>
    <Actor Name="User" Rule="CheckRole" Value="User" />
    <Actor Name="Manager" Rule="CheckRole" Value="Manager" />
  </Actors>
  <Commands>
    <Command Name="GetWeatherForecast" />
    <Command Name="SendWeatherForecast" />
    <Command Name="ReRun" />
  </Commands>
  <Activities>
    <Activity Name="InitialActivity" State="InitialActivity" IsInitial="true" IsFinal="false" IsForSetState="true" IsAutoSchemeUpdate="true">
      <Designer X="390" Y="170" Hidden="false" />
    </Activity>
    <Activity Name="WeatherActivity" State="WeatherActivity" IsInitial="false" IsFinal="false" IsForSetState="true" IsAutoSchemeUpdate="true">
      <Annotations>
        <Annotation Name="__customtype"><![CDATA[WeatherActivity]]></Annotation>
      </Annotations>
      <Designer X="730" Y="170" Hidden="false" />
    </Activity>
    <Activity Name="SendEmail" State="SendEmail" IsInitial="false" IsFinal="false" IsForSetState="true" IsAutoSchemeUpdate="true">
      <Annotations>
        <Annotation Name="__customtype"><![CDATA[SendEmail]]></Annotation>
        <Annotation Name="CcList"><![CDATA[[]]]></Annotation>
        <Annotation Name="BccList"><![CDATA[[]]]></Annotation>
        <Annotation Name="ReplyToList"><![CDATA[[]]]></Annotation>
        <Annotation Name="To"><![CDATA[mail@gmail.com]]></Annotation>
        <Annotation Name="Subject"><![CDATA[Weather]]></Annotation>
        <Annotation Name="IsHTML"><![CDATA[true]]></Annotation>
        <Annotation Name="Body"><![CDATA[WeatherDate: @WeatherDate
WeatherTemperature: @WeatherTemperature
Latitude: @Weather.latitude]]></Annotation>
      </Annotations>
      <Designer X="1100" Y="170" Hidden="false" />
    </Activity>
  </Activities>
  <Transitions>
    <Transition Name="InitialActivity_WeatherActivity_1" To="WeatherActivity" From="InitialActivity" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" DisableParentStateControl="false">
      <Restrictions>
        <Restriction Type="Allow" NameRef="User" />
      </Restrictions>
      <Triggers>
        <Trigger Type="Command" NameRef="GetWeatherForecast" />
      </Triggers>
      <Conditions>
        <Condition Type="Always" />
      </Conditions>
      <Designer Hidden="false" />
    </Transition>
    <Transition Name="WeatherActivity_SendEmail_1" To="SendEmail" From="WeatherActivity" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" DisableParentStateControl="false">
      <Restrictions>
        <Restriction Type="Allow" NameRef="Manager" />
      </Restrictions>
      <Triggers>
        <Trigger Type="Command" NameRef="SendWeatherForecast" />
      </Triggers>
      <Conditions>
        <Condition Type="Always" />
      </Conditions>
      <Designer Hidden="false" />
    </Transition>
    <Transition Name="SendEmail_InitialActivity_1" To="InitialActivity" From="SendEmail" Classifier="Reverse" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" DisableParentStateControl="false">
      <Restrictions>
        <Restriction Type="Restrict" NameRef="User" />
      </Restrictions>
      <Triggers>
        <Trigger Type="Command" NameRef="ReRun" />
      </Triggers>
      <Conditions>
        <Condition Type="Always" />
      </Conditions>
      <Designer X="816" Y="342" Hidden="false" />
    </Transition>
  </Transitions>
</Process>

Open a browser at http://localhost:3000/ and click the 'Designer' tab. We will add only one process scheme, since the free license does not allow us to make more schemes. To obtain a license, you can email sales@optimajet.com.

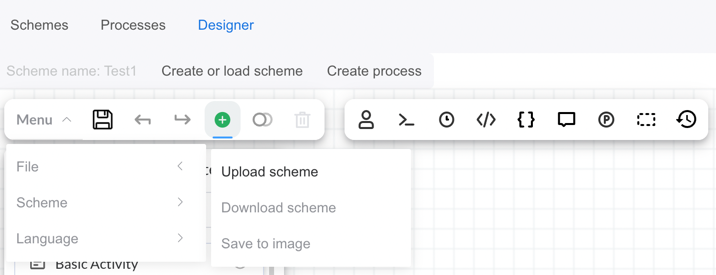

Click on the Menu -> File -> Upload scheme and choose Test1.xml files. Then click on Save button to save the scheme.

Upload scheme menu

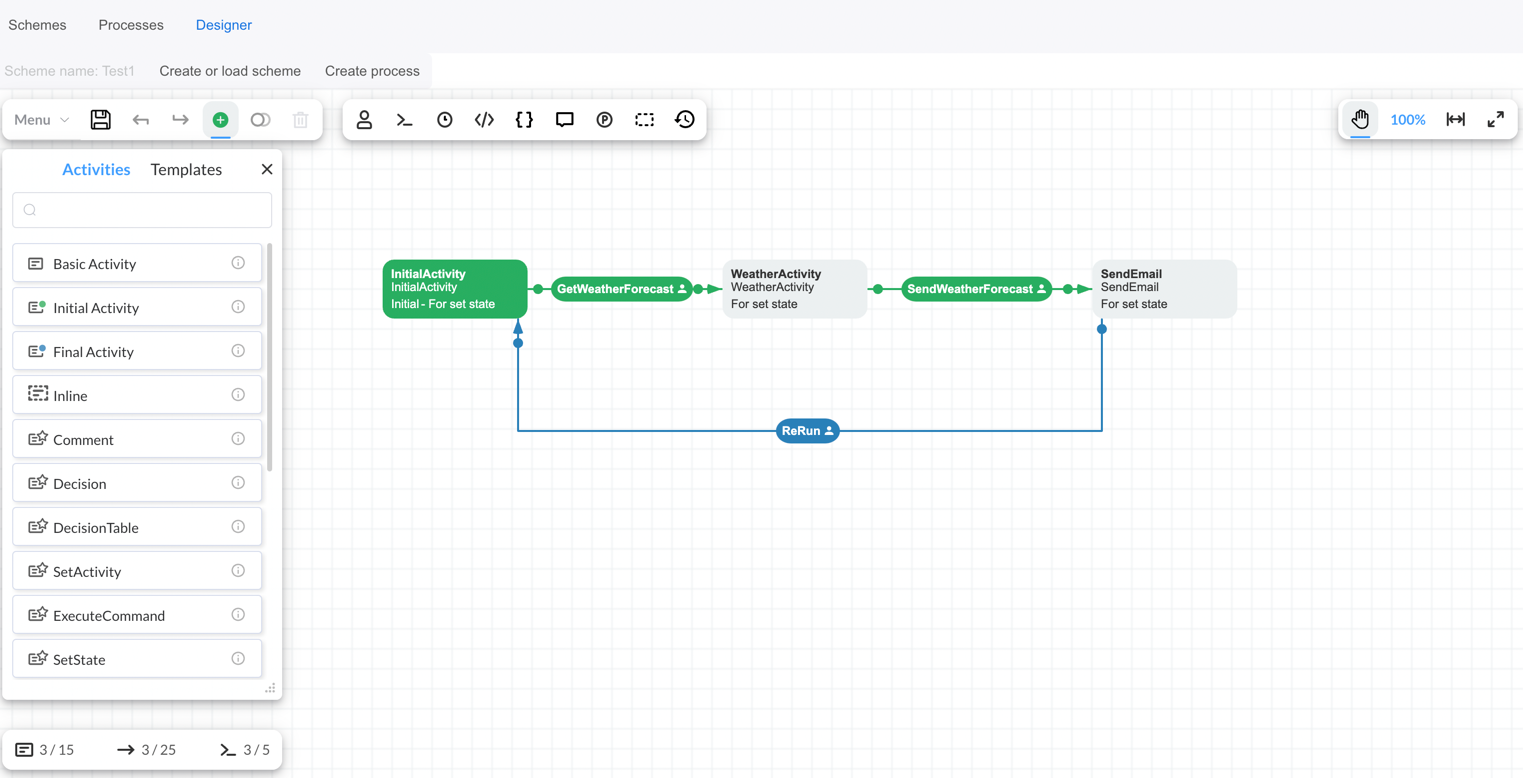

Now we have a process scheme:

Process scheme

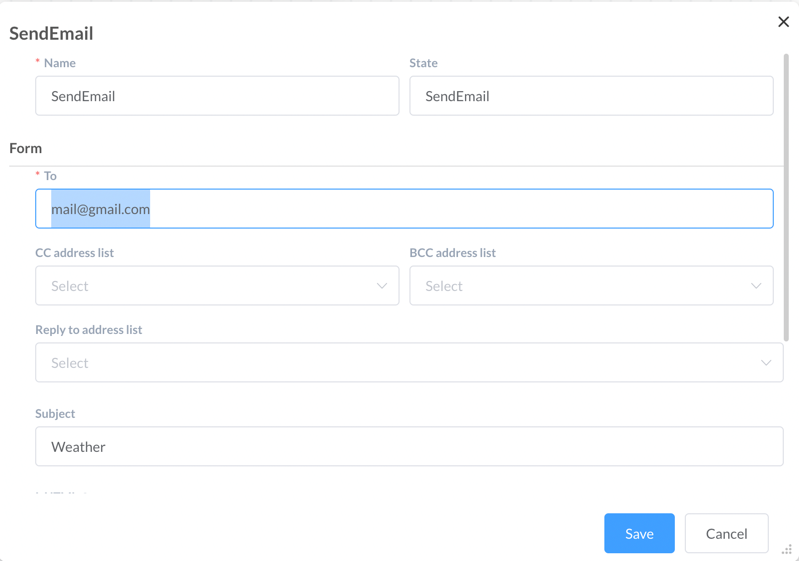

The last thing we need is to change the email address in the SendEmail activity. Write your email address here:

Email sending properties

Then click the 'Save' button and then click the 'Save' button on the toolbar to save the scheme.

Starting and executing the process​

Click the 'Create process' button:

Create process button

Now the process is in InitialActivity (highlighted in yellow) activity. And there is one 'GetWeatherForecast' command available for a user with the 'User' role (Peter, Margaret). If you select John or Sam in select, the 'GetWeatherForecast' command will disappear because they only have the 'Manager' role.

Process in InitialActivity

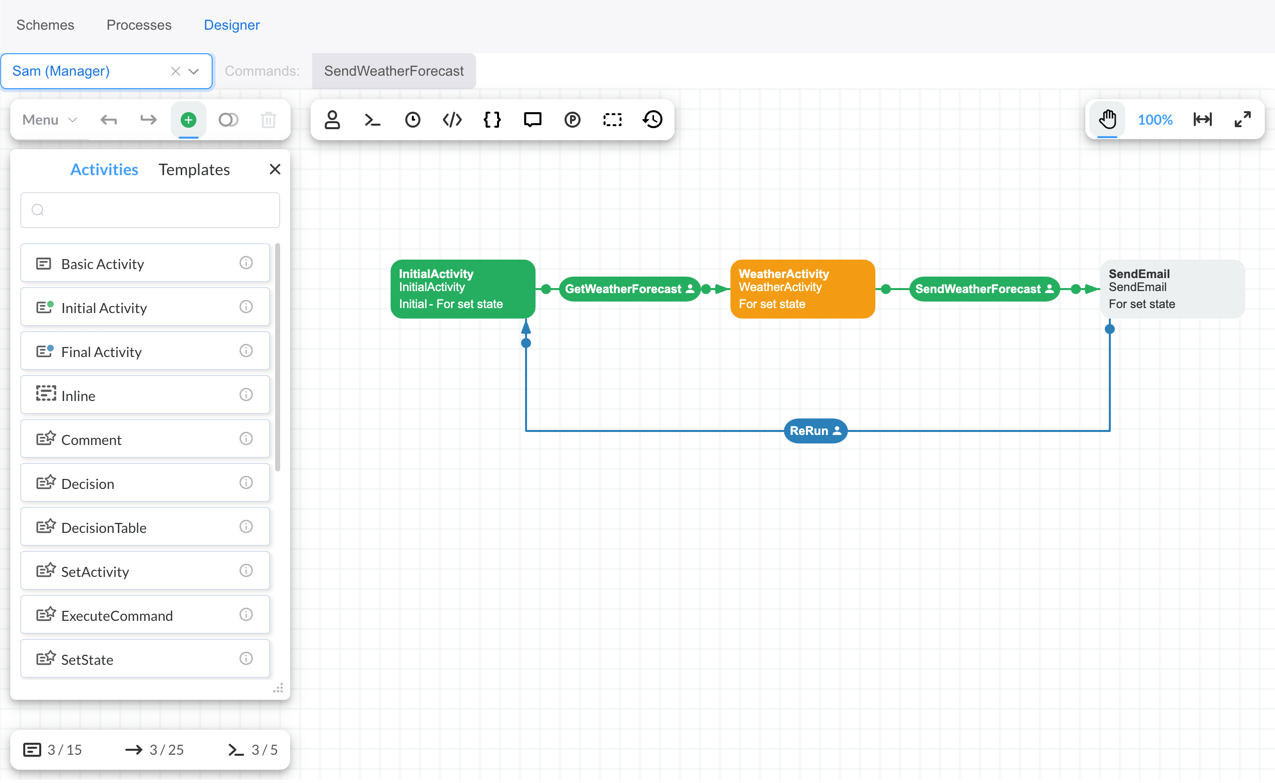

Now click the 'GetWeatherForecast' button to execute the command and the process will switch to the WeatherActivity activity. And there is one 'SendWeatherForecast' command available for a user with the 'Manager' role (Peter, John, Sam):

Process in WeatherActivity

Click the 'Process info' button (the letter 'P' in the circle) on the toolbar and go to the 'Process Parameters' tab in the window that opens to see the process parameters. Note that here you can see the process parameters that were saved using our custom activity class WeatherActivity.

Process parameters

Select the Sam user and click the 'SendWeatherForecast' button. Now the process is in SendEmail activity. And there is one 'ReRun' command available for a user without the 'User' role (John, Sam):

Process in SendEmail

If all your settings have been done correctly, you should see something similar to this email in your inbox:

Email

Weather

WeatherDate: 2022-10-07 WeatherTemperature: 5,7 Latitude: 52,52

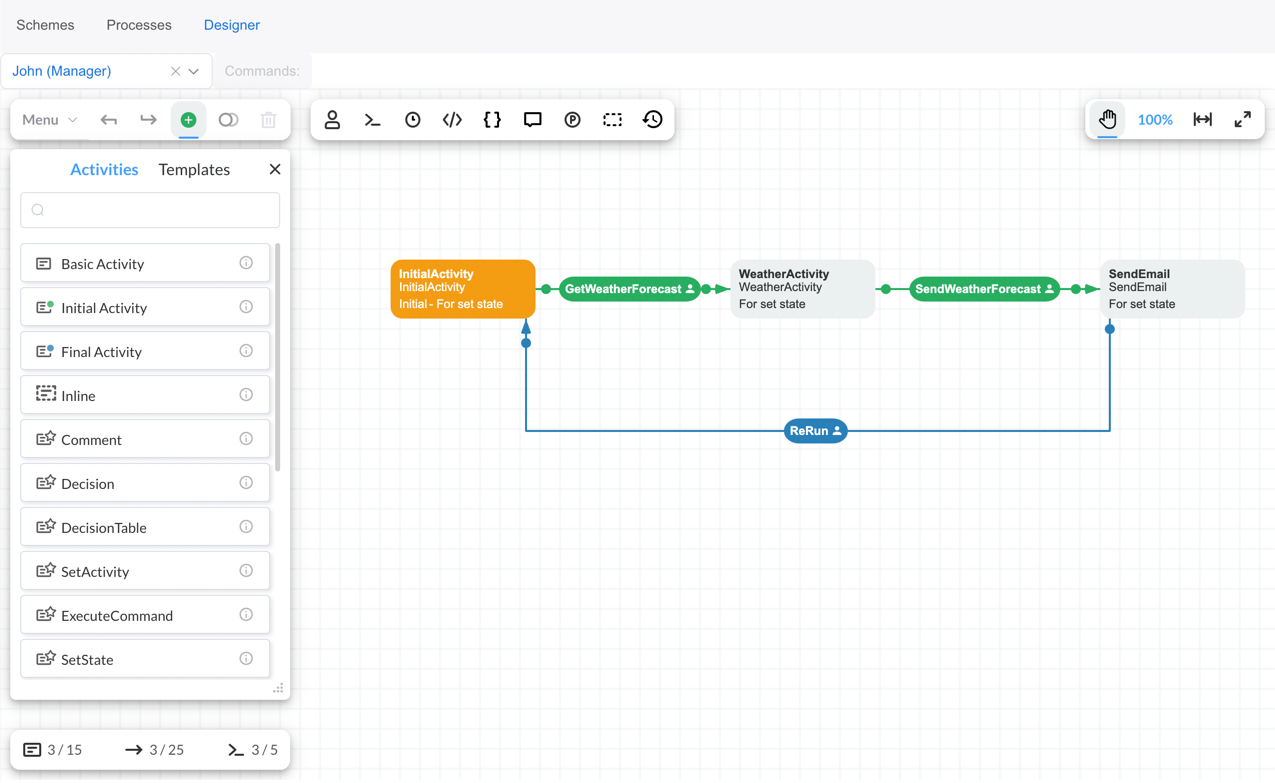

Select the John user and click the 'Rerun' button. Now the process is in InitialActivity activity again:

Process after ReRun

You can execute the commands for this process again, but let's go to the 'Schemes' tab (click on it):

Table of schemes

This is a table with schemes, and it has only one row with the scheme name 'Test1'. Click on this row to open the scheme in the Workflow Designer. Click the 'Process info' button (the letter 'P' in the circle) on the toolbar and enter the tags in the 'Tags' field:

Tag filling window

Then click the 'Save' button and then click the 'Save' button on the toolbar to save the scheme. After that, go to the 'Schemes' tab to view the data in the schemes table.

Table of schemes with tags

Learn more about scheme tags here. Go to the 'Processes' tab to view the table with process instances:

Processes table

In this table you can see rows with the process instances. The data for this table is obtained through the WorkflowController.Instances method in the WorkflowApi project. You can click on a row to open a process instance in the Workflow Designer.

Conclusion​

Wow, it's been a long journey! Now you have a simple admin panel where you can see your process schemas, process instances, and Workflow Designer. You can change our simple process - add actions, commands and more. You can also change your Backend project and add more useful stuff. Check out our documentation to learn more.
