Introduction
Since version 1.5 Workflow Engine comes with an ability to define and use forks (parallel processes). Each fork defines a sub-process.
This article explains how to define, use and control parallel branches. You may find an example in the Alternative to Windows Workflow Foundation article.
Warning: the functional doesn’t work with the free license of Workflow Engine. It requires more limits of the scheme. A trial key lifts that limit.
Parallel branches terms
We added some flags to Transitions for parallel branches.
- Is fork. Transition marked by this flag starts or ends a sub-process;
- Merge sub-process via set state. It changes the current activity of the parent process to the final activity of the sub-process and results in merging of a parent process and a sub-process;
- Disable parent process control. If a parent process is set to an activity where the sub-process cannot exist, it disables the auto-removing of the sub-process.
Create a Scheme

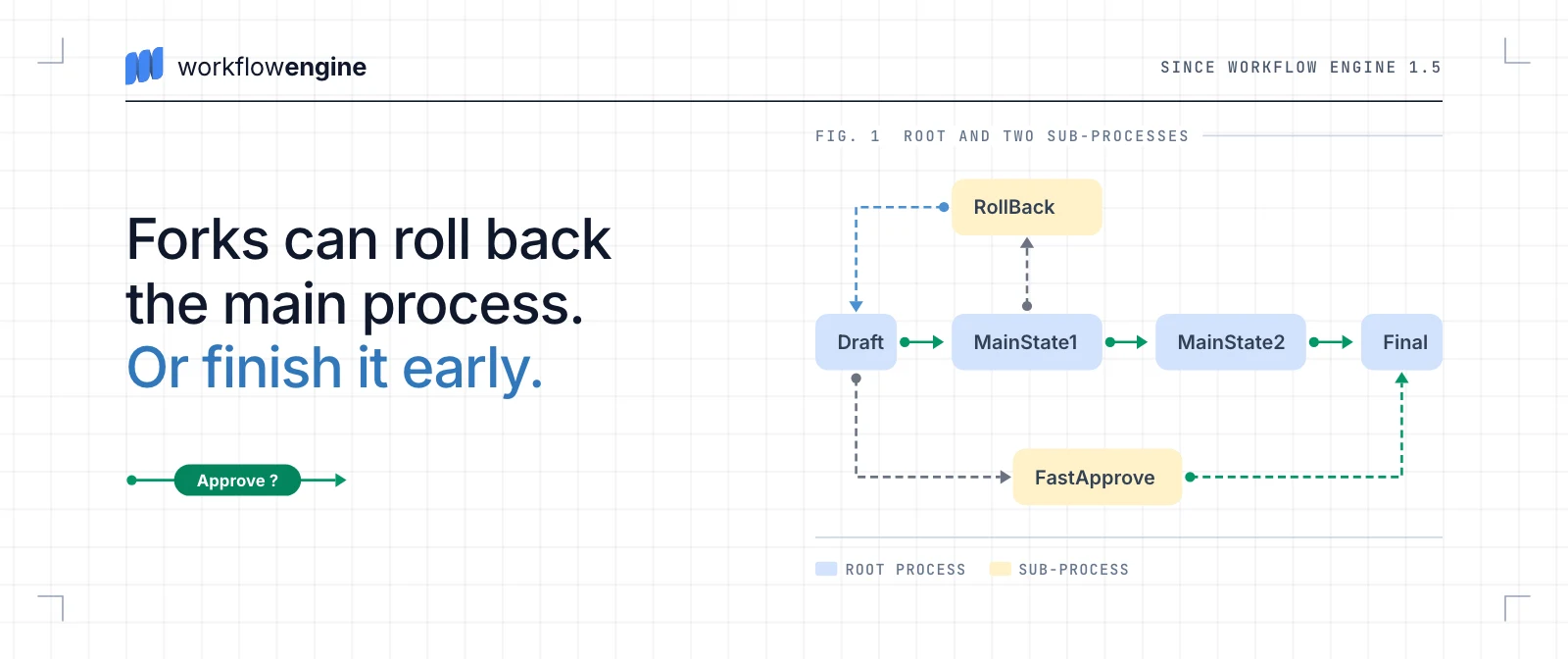

Let’s create the scheme of the process with a root process and two sub-processes.
Commands
- approve – for direct transition to the main branch;
- denied – for reverse transition to the main branch;
- rollback – for sub-process rollback;
- fastapprove – for sub-process fastapprove.
Root Process
Activities:
- Draft;
- MainState1;
- MainState2;
- Final.
If you want to create transitions between activities, use the “approve” command for direct transition and the “denied” command for reverse.
Sub-process “RollBack”
This process is used to execute a rollback.
Activities:
- Rollback.
The process starts with MainState1 activity and it has two transitions:
The incoming transition:
- Type: AA;
- Classifier: NotSpecified;
- Is fork: true.
The outcoming transition:
- Type: AC;
- Classifier: Direct;
- Trigger type: Command;
- Command: rollback;
- Is fork: true;
- Merge sub-process via set state: true.
Sub-process "FastApprove"
This process is used to execute fast approve and to change the state of the main process to Final.
Activities:
- FastApprove.
The process starts with Draft activity and it has two transitions:
The incoming transition:
- Type: AA;
- Classifier: NotSpecified;
- Is fork: true.
The outcoming transition:
- Type: AC;
- Classifier: Direct;
- Trigger type: Command;
- Command: fastapprove;
- Is fork: true;
- Merge sub-process via set state: true.

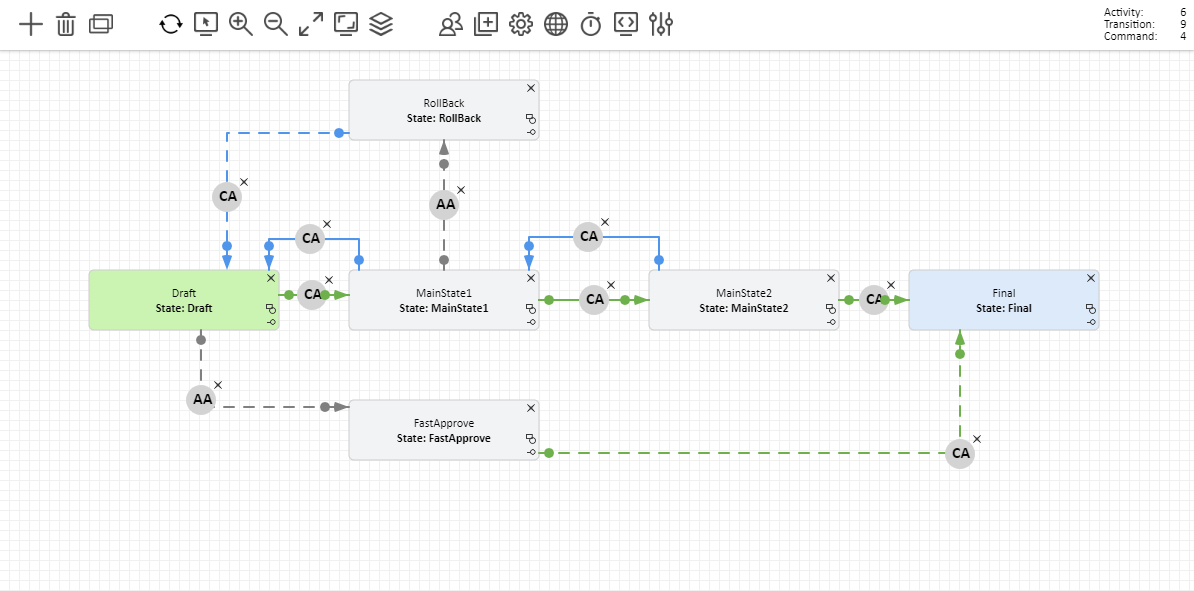

As a result, your scheme should look like this:
xml
<Process>
<Designer />
<Commands>
<Command Name="approve" />
<Command Name="denial" />
<Command Name="rollback" />
<Command Name="fastapprove" />
</Commands>
<Activities>
<Activity Name="Draft" State="Draft" IsInitial="True" IsFinal="False" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="90" Y="270" />
</Activity>
<Activity Name="MainState1" State="MainState1" IsInitial="False" IsFinal="False" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="350" Y="270" />
</Activity>
<Activity Name="MainState2" State="MainState2" IsInitial="False" IsFinal="False" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="650" Y="270" />
</Activity>
<Activity Name="Final" State="Final" IsInitial="False" IsFinal="True" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="910" Y="270" />
</Activity>
<Activity Name="RollBack" State="RollBack" IsInitial="False" IsFinal="False" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="350" Y="80" />
</Activity>
<Activity Name="FastApprove" State="FastApprove" IsInitial="False" IsFinal="False" IsForSetState="True" IsAutoSchemeUpdate="True">
<Designer X="350" Y="400" />
</Activity>
</Activities>
<Transitions>
<Transition Name="Draft_Activity_1_1" To="MainState1" From="Draft" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="false" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="approve" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="313" Y="295" />
</Transition>
<Transition Name="MainState1_Activity_1_1" To="MainState2" From="MainState1" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="false" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="approve" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer />
</Transition>
<Transition Name="MainState2_Activity_1_1" To="Final" From="MainState2" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="false" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="approve" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer />
</Transition>
<Transition Name="Draft_Activity_1_2" To="RollBack" From="MainState1" Classifier="NotSpecified" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="true" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Auto" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer />
</Transition>
<Transition Name="BackCall_Draft_1" To="Draft" From="RollBack" Classifier="Reverse" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="true" MergeViaSetState="true" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="rollback" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="228" Y="197" />
</Transition>
<Transition Name="Draft_Activity_1_3" To="FastApprove" From="Draft" Classifier="NotSpecified" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="true" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Auto" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="202" Y="400" />
</Transition>
<Transition Name="Activity_1_MainState2_1" To="Final" From="FastApprove" Classifier="Direct" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="true" MergeViaSetState="true" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="fastapprove" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="961" Y="454" />
</Transition>
<Transition Name="MainState1_Draft_1" To="Draft" From="MainState1" Classifier="Reverse" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="false" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="denial" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="311" Y="239" />
</Transition>
<Transition Name="MainState2_MainState1_1" To="MainState1" From="MainState2" Classifier="Reverse" AllowConcatenationType="And" RestrictConcatenationType="And" ConditionsConcatenationType="And" IsFork="false" MergeViaSetState="false" DisableParentStateControl="false">
<Triggers>
<Trigger Type="Command" NameRef="denial" />
</Triggers>
<Conditions>
<Condition Type="Always" />
</Conditions>
<Designer X="589" Y="237" />
</Transition>
</Transitions>
</Process>
Test
text
Operation:
0 - CreateInstance
1 - GetAvailableCommands
2 - ExecuteCommand
3 - GetAvailableState
4 - SetState
5 - DeleteProcess
9 - Exit
The process isn`t created.
CreateInstance - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: Draft, CurrentActivity: Draft
Enter code of operation:2
Available commands:
- approve (LocalizedName:approve, Classifier:Direct)
- fastapprove (LocalizedName:fastapprove, Classifier:Direct)
Enter command:approve
ExecuteCommand - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: MainState1, CurrentActivity: MainState1
Enter code of operation:2
Available commands:
- approve (LocalizedName:approve, Classifier:Direct)
- denial (LocalizedName:denial, Classifier:Reverse)
- rollback (LocalizedName:rollback, Classifier:Reverse)
- fastapprove (LocalizedName:fastapprove, Classifier:Direct)
Enter command:fastapprove
ExecuteCommand - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: Final, CurrentActivity: Final
Enter code of operation:4
Available state to set:
- Draft
- MainState1
- MainState2
- Final
Enter state:draft
SetState - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: Draft, CurrentActivity: Draft
Enter code of operation:2
Available commands:
- approve (LocalizedName:approve, Classifier:Direct)
- fastapprove (LocalizedName:fastapprove, Classifier:Direct)
Enter command:approve
ExecuteCommand - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: MainState1, CurrentActivity: MainState1
Enter code of operation:2
Available commands:
- approve (LocalizedName:approve, Classifier:Direct)
- denial (LocalizedName:denial, Classifier:Reverse)
- rollback (LocalizedName:rollback, Classifier:Reverse)
- fastapprove (LocalizedName:fastapprove, Classifier:Direct)
Enter command:approve
ExecuteCommand - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: MainState2, CurrentActivity: MainState2
Enter code of operation:2
Available commands:
- approve (LocalizedName:approve, Classifier:Direct)
- denial (LocalizedName:denial, Classifier:Reverse)
- rollback (LocalizedName:rollback, Classifier:Reverse)
- fastapprove (LocalizedName:fastapprove, Classifier:Direct)
Enter command:rollback
ExecuteCommand - OK.
ProcessId = 'c3b6c1c2-a2b8-4ae0-b208-72351cdc9f43'. CurrentState: Draft, CurrentActivity: Draft
